180W White Led Moving Head Spot for Stage

180W White Led Moving Head Spot for Stage

Model:
MAG-180SPOT
Brand:
Ri-ART
Original:
Guangzhou, China
MOQ:
1 piece
Delivery Time:
7-10 Working Day
Certificate:
CE,ISO 9001,ROHS
OEM/ODM:
Accepted
Warranty:
12 months
Packaging:
Carton box
Power:
180W
Application:
TV studio, theater, opera house, auditorium, stage etc

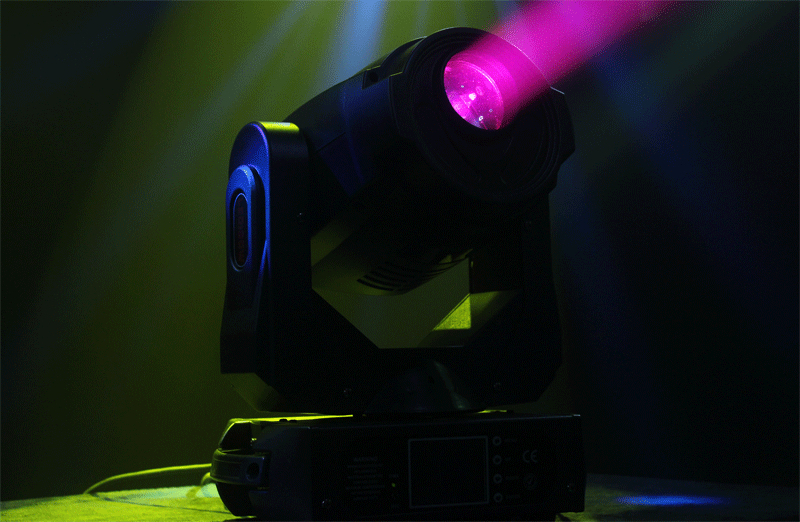

MAG-180SPOT is a super bright led moving head with unique 180W led source, projected from a compact tiny body it can produce output brighter than a traditional discharge 575w unit. The efficient optical system provides a sharp cutting edge of the spot without any shadows. Effect features including saturated colors, fixed gobo wheel, rotating gobo wheel with replaceable positions and real indexing feature, rotating prism wheel with 3 facets, motorized focus, full range dimmer, various strobe effect. Brightness, efficiency and compactness are what Mag-180spot stands for, Small unit gives you nice performance!


    Source

Light source: Advanced 180w white led
 Led life: 60.000 hours
Luminous Flux: 10985lumen, 21385lux@2.5m

    Power

Ballast: switching mode power supply
◆ Max power consumption: 250W
Powercon in and out
 Input voltage range: 100–240V, 50-60Hz

    OPTICAL SYSTEM

Beam angle: 15°

    Features

X/Y
Pan: 540°(2.3sec), Tilt: 265° (1.8 sec)
16-bit resolution
◇ Auto repositioning

    Colors

7+open, bidirectional rainbow effect

    Gobos

 Outside ¢25.8mm, inside ¢21.5mm
 6+ open custom interchangeable  rotating gobo.  Real indexable and gobo  shaking


 8+ open fixed gobos

·
Prism: 3 facet prism
Frost 8bit

    Focus

Motorized auto focus .8 bit or 16bit

    Dimmer

◇ Full range 0-100% dimmer

    Strobe effect

Strobe effect slow to fast
Random strobe

    Other function

Indicate temperature info of lamp
◆ Fan speed auto change according to temperature

    Dimension and Weight

◇ Dimension: 275 X 245 X 530 MM(packing size)
◆ Net Weight: 8.3 KG
 Gross Weight: 9.7 KG

    Rigging

 Mounting points: 4 ¼-turn locks
 2 x Omega brackets with ¼-turn quick locks



DMX channels:  17 CH

Channel

Function

Value

Description

1

Pan

0-255



2

Pan Fine

0-255



3

Tilt

0-255



4

Tilt Fine

0-255



5

Pan/Tilt speed

0-255

Decreasing speed

6

Dimmer

0-255

Dimmer 0-100%

7

Strobe

0-19

No function

20-199

Strobe effect slow to fast

200-249

Random strobe

250-255

No function

8

Colour

0-9

Open/White

10-19

Half color

20-29

Color1

30-39

Half color

40-49

Color2

50-59

Half color

60-69

Color3

70-79

Half color

80-89

Color4

90-99

Half color

100-109

Color5

110-119

Half color

120-129

Color6

130-139

Half color

140-149

Color7

150-159

Half color

160-199

Color auto changing from slow to fast

200-227

Forwards rainbow effect from fast to slow

228-255

Backwards rainbow effect from slow to fast

9

Focus

0-255



10

Gobo 1

0-19

Open

20-39

Gobo1

40-59

Gobo2

60-79

Gobo3

80-99

Gobo4

100-119

Gobo5

120-159

Gobo6

160-179

Forwards step

180-199

Backwards step

200-226

Forwards gobo rotation from fast to slow

227-255

Backwards gobo rotation from slow to fast

180-199

Backwards step

200-226

Forwards gobo rotation from fast to slow

227-255

Backwards gobo rotation from slow to fast

11

Gobo 1 Rot.

0-19

Stop

20-99

Forwards gobo rotation from fast to slow

12

Gobo1 shake

0-9

No function

10-255

Shake slow to fast

13

Gobo2

0-19

Open

20-31

Gobo1

32-47

Gobo2

48-63

Gobo3

64-79

Gobo4

80-95

Gobo5

96-111

Gobo6

112-127

Gobo7

128-159

Gobo8

160-179

Forwards step

180-199

Backwards step

200-226

Forwards gobo rotation from fast to slow

227-255

Backwards gobo rotation from slow to fast

180-199

Backwards step

200-226

Forwards gobo rotation from fast to slow

227-255

Backwards gobo rotation from slow to fast

14

Gobo1 Shake

0-9

No function





10-255

Slow to Fast

15

Prism

0-9

Off

10-39

Open

40-99

Forwards rotation from fast to slow

100-159

Backwards rotation from slow to fast



160-255

Forwards Backwards rotation from slow to fast

16

frost

0-255

frost

17

Control

20-39

Auto1





40-59

Auto2





200-219

Reset



static gobo



Rotating Gobo
