LED Bar Outdoor IP65 1m Wash Light 18 x 12w RGBW 4-in-1 LEDs

LED Bar Outdoor IP65 1m Wash Light 18 x 12w RGBW 4-in-1 LEDs

Model:
RI4-18
Brand:
Ri-ART
Original:
Guangzhou, China
MOQ:
1 piece
Delivery Time:
7-10 Working Day
Certificate:
CE,ISO 9001,ROHS
OEM/ODM:
Accepted
Warranty:
12 months
Packaging:
Carton box
Power:
180 W
Application:
TV studio, theater, opera house, auditorium, stage etc

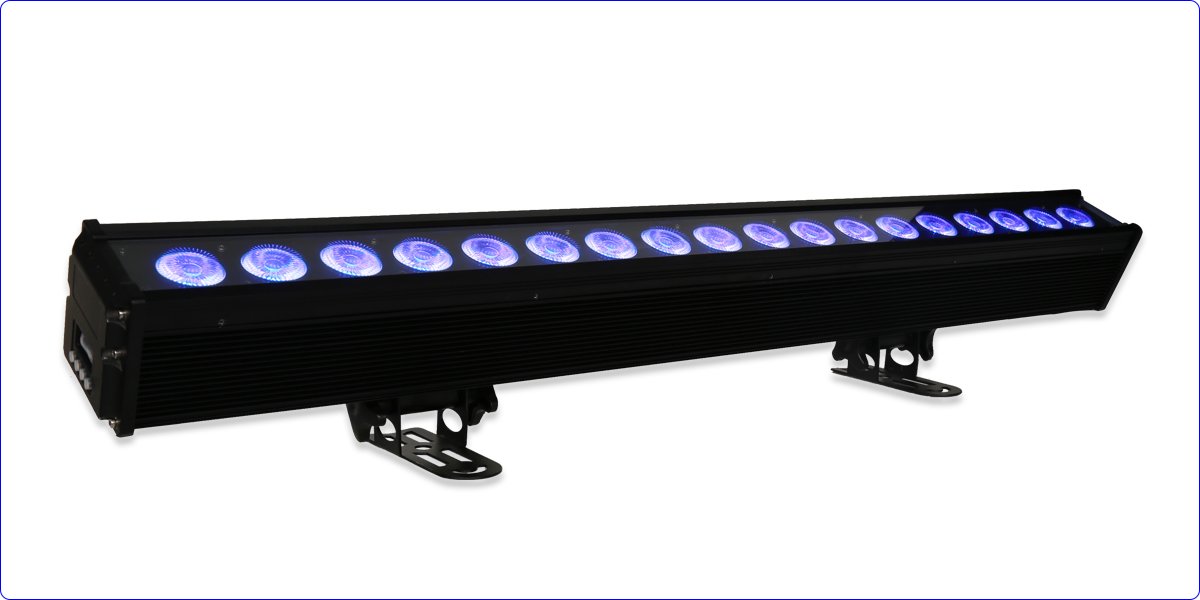

The LED Bar RI4-18 features individual pixel control and uses 18 12W RGBW 4-in-1 LEDs to produce a powerful wash effect great for both indoor and outdoor events. Being IP rated, this fixture can handle being outside in the weather and when used indoors, a spilt drink won't cause damage. With a beam angle of just 15 degrees, it is perfect for lighting up walls with vibrant color or equally as an effect in itself. The inclusion of white, amber and UV within the LED provides many more colouring options ranging from bright whites, to warm shades and glowing UV.


     Source

Light Source: 18x 10W RGBW LED multichips
Led Life Expectancy: minimum 60.000 hours
Typical Lumen Maintenance: 70% @ 60.000 hours
LED colour variants: RGBW

     Power

 Power supply: Electronic auto-ranging
Input voltage range: 100–240 V, 50/60 Hz
Power consumption: 180 W at 220 V / 50 Hz
Power in/out: Neutrik PowerCon True1 in/out

     FEATURE

DMX-512 protocol
 Beam angle:15°     35°(optional)
 Smooth RGB+UV Color Mixing (fast or slow color change operation)
 Built-in colour macros and pixel effects
 Virtual colour wheel:With 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
 Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay during dimming)
 Colour rainbow effect with variable speed
 Pre-programmed effects: Pixel effects with colour chases, waves and pulses at variable speed and directions
 High resolution dimmer: 0–100%
 Strobe: Variable speed, max. 20 flashes per second
 Pre-programmed: Random strobe & pulse effects

     Dimension and Weight

 Fixture Dimensions (LxWxH): 1100 x 180 x 230mm
Weight: 5.5 lbs./ 7.51 kg.

     Rigging

 Via two mounting brackets0



DMX-512 protocol

CHANNEL

FUNCTION

DESCRIPTION

1 CH

DIMMER

0-255     DIMMER: 0-100%

2 CH

STROBE

0-255     strobe from slow to fast

3 CH


PRE-PROGRAMMED -1


0--25:   NO

26--35:  NO

36--45:  Color jump changing

46--55: Color flow changing

56--65:  Color choice;(can be controlled by ch1)

66--75:  Color jump changing(can be controlled by ch1)

76--85:jump changing pulse changing(controlled by ch1)

86--95:  chase 1;(controlled by ch1-6)

116--125:chase 2;(controlled by ch1-6)

......

236--245:chase 15;(controlled by ch1-6)

246--255:sound control ;(controlled by ch1-6)

4 CH


PRE-PROGRAMMED -2


0--5:    NO

6—255   Program 1—program 250);(controlled by ch1-6)




PRE-PROGRAMMED -3


Color chase ; 0--127: flow to left

128--255:flow to right

5 CH

FUNCTION SPEED

1-255  from slow to fast

6 CH

R DIMMING

0-255     DIMMER: 0-100%

7 CH

G DIMMING

0-255     DIMMER: 0-100%

8 CH

B DIMMING

0-255     DIMMER: 0-100%

9 CH

W DIMMING

0-255     DIMMER: 0-100%

DMX512  23 CH table

CHANNEL

FUNCTION

DESCRIPTION

1 CH

DIMMER

R, G, B, W total dimming, linear dimming, from dark to bright

2 CH

STROBE

R, G, B, W total strobe, from slow to fast

3 CH


PRE-PROGRAMMED -1


0--25:   NO

26--35:  NO

36--45:  Color jump changing

46--55: Color flow changing

56--65:  Color choice;(can be controlled by ch1)

66--75:  Color jump changing(can be controlled by ch1)

76--85:jump changing pulse changing(controlled by ch1)

86--95:  chase 1;(controlled by ch1-6)

116--125:chase 2;(controlled by ch1-6)

.......

236--245:chase 15;(controlled by ch1-6)

246--255:sound control ;(controlled by ch1-6)

4 CH


PRE-PROGRAMMED -2


0--5:    NO

6—255   Program 1—program 250);(controlled by ch1-6)




Color chase


0--127: flow to left

128--255:flow to right

5 CH

FUNCTION SPEED

1-255  from slow to fast

6 CH

Led lamp 1

1-255   dimmer 0-100%

7 CH

Led lamp 2

R, G, B, W dimming

8 CH

Led lamp 3

R, G, B, W dimming

9 CH

Led lamp 4

R, G, B, W dimming

10 CH

Led lamp 5

R, G, B, W dimming

11 CH

Led lamp 6

R, G, B, W dimming

12 CH

Led lamp 7

R, G, B, W dimming

13 CH

Led lamp 8

R, G, B, W dimming

14 CH

Led lamp 9

R, G, B, W dimming

15 CH

Led lamp 10

R, G, B, W dimming

15 CH

Led lamp 11

R, G, B, W dimming

17 CH

Led lamp 12

R, G, B, W dimming

18 CH

Led lamp 13

R, G, B, W dimming

19 CH

Led lamp 14

R, G, B, W dimming

20 CH

Led lamp 15

R, G, B, W dimming

21 CH

Led lamp 16

R, G, B, W dimming

22 CH

Led lamp 17

R, G, B, W dimming

23 CH

Led lamp 18

R, G, B, W dimming
