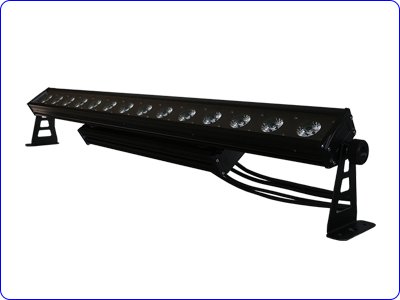

14 x 30w RGB IP65 1m  Outdoor Led Wash Light

14 x 30w RGB IP65 1m Outdoor Led Wash Light

Model:
RI4-14RGB
Brand:
Ri-ART
Original:
Guangzhou, China
MOQ:
1 piece
Delivery Time:
7-10 Working Day
Certificate:
CE,ISO 9001,ROHS
OEM/ODM:
Accepted
Warranty:
12 months
Packaging:
Carton box
Power:
440W
Application:
TV studio, theater, opera house, auditorium, stage etc

The LED PIXEL RI4-14RGB features individual pixel control and uses 14 30W RGB 3-in-1 LEDs to produce a powerful wash effect great for both indoor and outdoor events. Being IP rated, this fixture can handle being outside in the weather and when used indoors, a spilt drink won't cause damage. With a beam angle of just 15 degrees, it is perfect for lighting up walls with vibrant color or equally as an effect in itself.  Under DMX control and individual pixel control, the user can create any effect they want vary the colour and intensity of any of the 14 LEDs. Using multiple units, apart from amazing patterns, you can even create recognisable text.


    Light Sources

◇ 14pcs 30W RGB 3 in 1 LED
Power Consumption: 440W
Power Voltage: AC100-220V,50/60Hz
Gross Weight:10Kgs

    Control

◇ DMX Channel: 8/19/42Channel
Control Modes: DMX/auto run/master slave

    Construction

◇ Display: Digital panel
Data In/Out socket: 3-pin

    LED Display Function Table

No.

Display

Function

1

A001

Address code, (001-512) B, C key to add and subtract address code values

2

8ch-19ch-42ch

Channel selection,(8CH,19CH,42CH) B, C key to add and subtract

3

CC00

color jump to change, (01-99) B, C key to modify jump to change speed

4

Ed00

Gradient,pulse variable (01-99) B, C key to modify the speed

5

Er00

Color running 1, (01-99) B and C modify the speed

6

Po00

Color running 2, (01-99) B and C modify the speed

7

tr00

Running change(00-8) B and C modify the change

8

tU00

Running change(00-99) B and C modify the running speed

9

BEB1

Sound control running change B and C modify the running change

10

R200

Red colors, (000-255) B, C key to modify the colors

11

G200

Green colors, (000-255) B, C key to modify the colors

12

B200

Blue colors, (000-255) B, C key to modify the colors

13

ID00

LED fixture ID (01-14) B, C key to modify the ID value

14

OPRT

Master,slave



DMX channels:  8 CH

Channels

Function

DMX512 Value

Details

CH1

Dimmer

000-255

All dimmer for RGB linear, dark →bright  (0-100%)

CH2

Strobe

000-255

R, G, B, strobe,slow →fast

CH3

Function selection 1

0-25

Null

26-35

Null

36-45

Colorful jump to change(control by CH1-6)

46-55

Colorful Gradient(control by CH1-6)

56-65

Color selection(control by CH1)

66-75

Color jump to change(control by CH1)

76-85

Gradient,pulse variable(control by CH1)

86-95

Running pattern 1(control by CH1-6)

116-125

Running pattern 2(control by CH1-6)

...........



236-245

Running pattern 15(control by CH1-6)

246-255

Sound control(control by CH1-6)

CH4

Function selection 2

0-5

Null

6-255

255 fix pattern selection(control by CH1-6)

Function selection 3

0-127

Left colorful running directional control

128-255

Right colorful running directional control

CH5

Function speed

000-255

Function speed,slow →fast

CH6

Red

0-255

R dimmer, linear, dark →bright  (0-100%)

CH7

Green

0-255

G dimmer, linear, dark →bright  (0-100%)

CH8

Blue

0-255

B dimmer, linear, dark →bright  (0-100%)

DMX channels:  19 CH

Channels

Function

DMX512 alue

Details

CH1

Dimmer

000-255

All dimmer for RGB linear, dark →bright  (0-100%)

CH2

Strobe

000-255

R, G, B, strobe,slow →fast

CH3

Function selection 1

0-25

Null

26-35

Null

36-45

Colorful jump to change(control by CH1-6)

46-55

Colorful Gradient(control by CH1-6)

56-65

Color selection(control by CH1)

66-75

Color jump to change(control by CH1)

76-85

Gradient,pulse ariable(control by CH1)

86-95

Running pattern 1(control by CH1-6)

116-125

Running pattern 2(control by CH1-6)

...........



236-245

Running pattern 15(control by CH1-6)

246-255

Sound control(control by CH1-6)

CH4

Function selection 2

0-5

Null

6-255

255 fix pattern selection(control by CH1-6)

Function selection 3

0-127

Left colorful running directional control

128-255

Right colorful running directional control

CH5

Function speed

000-255

Function speed,slow →fast

CH6

1 Dimmer

000-255

R,G,B, Dimmer

CH7

2 Dimmer

000-255

R,G,B, Dimmer

CH8

3 Dimmer

000-255

R,G,B, Dimmer

CH9

4 Dimmer

000-255

R,G,B, Dimmer



...........





CH19

18 Dimmer

000-255

R,G,B, Dimmer

DMX channels:  42 CH

Channels

Function

DMX512 alue

Details

CH1

R1

0-255

R1 dimmer, linear, dark →bright  (0-100%)

CH2

G1

0-255

G1 dimmer, linear, dark →bright  (0-100%)

CH3

B1

0-255

B1 dimmer, linear, dark →bright  (0-100%)

CH5

R2

0-255

R2 dimmer, linear, dark →bright  (0-100%)

CH6

G2

0-255

G2 dimmer, linear, dark →bright  (0-100%)

CH7

B2

0-255

B2 dimmer, linear, dark →bright  (0-100%)

...........

...........

...........

...........

CH42

B14

0-255

B18 dimmer, linear, dark →bright  (0-100%)
