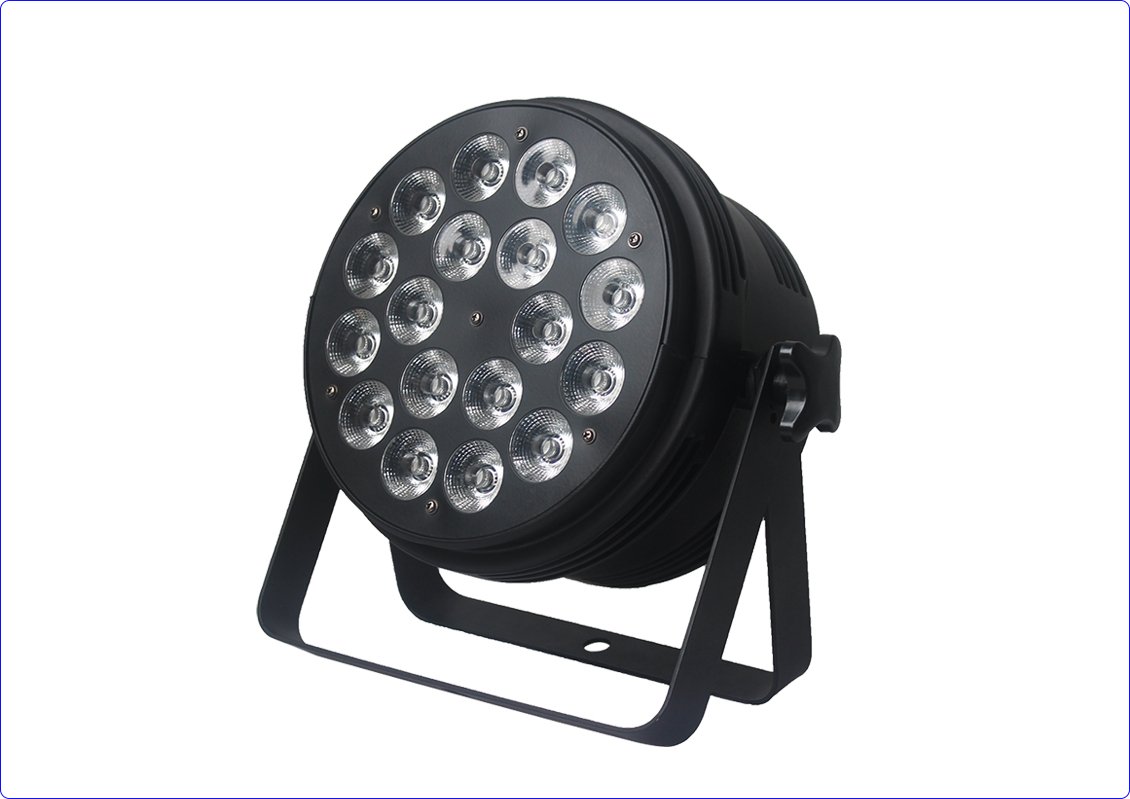

RI-218S can be used in multiple modes. Sound-activated, Auto, DMX or Master-slave. Master/Slave mix variable disco party lighting - Auto-play, static color, color changing, color fading, strobe light. Easy to use, and great LED up lighting for Mobile DJs, Disco, Clubs, Pub, Bar, Banquet, weddings, family parties, etc.
◇ 18pcs 10W RGBW LED
◆ Power Consumption: 180W
◇ Power Voltage: AC 100-220V, 50/60Hz
◆ Packing Dimension: 270*270*250mm
◇ Gross Weight: 2.5Kgs
◇ DMX Channel: 5/9Channel
◆ Control Modes: DMX/auto run/master slave
◇ Display: Digital panel
◆ Data In/Out socket: 3-pin
X/Y
◇ Dimming：32bit
◆ Refresh rate：20K HZ
◇ Flicker free in camera,TV
◆ Perfect dimmer curve
◇ Best color mixing effect
No. | Display | Function |
1 | d001 | 5 channel address code, (001-512) B, C key to add and subtract address code values |
2 | d.001 | 9 Channel address code, (001-512) B, C key to add and subtract address code values |
3 | CC01 | colour jump to change, (01-99) B, C key to modify jump to change speed |
4 | CP01 | Gradient (01-99) B, C key to modify the colors |
5 | dE01 | colour pulse variable, (01-99) B and C modify pulse variable, velocity gradient |
6 | dENo | Jump, Gradient and pulse variable |
7 | bEbE | Sound control,Jump, Gradient and pulse variable |
8 | R255 | Red colors, (000-255) B, C key to modify the colors |
9 | G255 | Green colors, (000-255) B, C key to modify the colors |
10 | B255 | Blue colors, (000-255) B, C key to modify the colors |
11 | W255 | White colors, (000-255) B, C key to modify the colors |
12 | Dr01 | Mode 1 Linear dimmer |
DMX channels: 5 CH
Channels | Function | DMX512 Value | Details |
CH1 | Red | 0-255 | R dimmer, linear, dark →bright (0-100%) |
CH2 | Green | 0-255 | |
CH3 | Blue | 0-255 | B dimmer, linear, dark →bright (0-100%) |
CH4 | White | 0-255 | W dimmer, linear, dark →bright (0-100%) |
CH5 | Dimmer mode selection | 0-9 | Display board menu functions |
10-50 | Linear dimmer | ||
51-101 | Quickly turn on or turn off | ||
102-152 | Slow speed of linear dimmer | ||
153-203 | More slower linear dimmer | ||
204-255 | More slower speed of linear dimmer |
DMX channels: 9 CH
Channels | Function | DMX512 Value | Details |
CH1 | Red | 000-255 | R adjustment, linear, dark →bright (0-100%) |
CH2 | Green | 000-255 | G adjustment, linear, dark →bright (0-100%) |
CH3 | Blue | 000-255 | B adjustment, linear, dark →bright (0-100%) |
CH4 | White | 000-255 | W adjustment, linear, dark →bright (0-100%) |
CH5 | Dimmer mode selection | 0-9 | Display board menu functions |
10-50 | Linear dimmer | ||
51-101 | Quickly turn on or turn off | ||
102-152 | Slow speed of linear dimmer | ||
153-203 | More slower linear dimmer | ||
204-255 | More slower speed of linear dimmer | ||
CH6 | Dimmer | 000-255 | All dimmer for RGBWA (0-100%) |
CH7 | Strobe | 000-255 | R, G, B, W A strobe, slow →fast |
CH8 | Function Choose | 10-50 | Jump effect |
51-100 | Gradual change | ||
101-150 | Pulse variabl effect | ||
151-200 | Jump, gradual and pulse variabl effect | ||
201-255 | Sound control | ||
CH9 | Speed | 000-255 | Function Speed, slow →fast |
